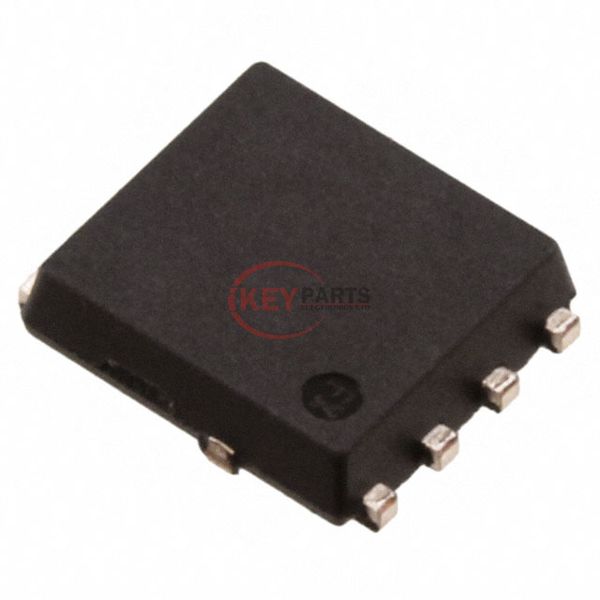

NP75P04YLG-E1-AY

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America NP75P04YLG-E1-AY

Manufacturer :
Renesas Electronics America
Mfr. Part # :
NP75P04YLG-E1-AY
Description
MOSFET P-CH 40V 75A 8HSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NP75P04YLG-E1-AY PDF
In Stock
268
NP75P04YLG-E1-AY Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs9.7mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs140 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 25 V
FET Feature-
Power Dissipation (Max)1W (Ta), 138W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HSON
Package / Case8-SMD, Flat Lead Exposed Pad
Request Quote Now
Request Quote Now

We can supply NP75P04YLG-E1-AY, use the request quote form to request NP75P04YLG-E1-AY pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NP75P04YLG-E1-AY. The price and lead time for NP75P04YLG-E1-AY depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NP75P04YLG-E1-AY. We look forward to working with you to establish long-term relations of cooperation.
