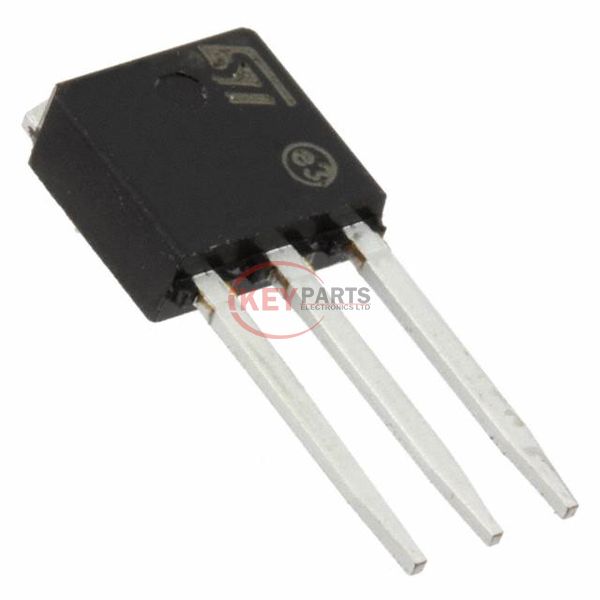

STU60N3LH5

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STU60N3LH5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STU60N3LH5
Description
MOSFET N-CH 30V 48A IPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STU60N3LH5 PDF
In Stock
812
STU60N3LH5 Tech Specifications
SeriesSTripFET™ V
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs8.4mOhm @ 24A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.8 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1620 pF @ 25 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply STU60N3LH5, use the request quote form to request STU60N3LH5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STU60N3LH5. The price and lead time for STU60N3LH5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STU60N3LH5. We look forward to working with you to establish long-term relations of cooperation.
