IPI100N08N3GHKSA1

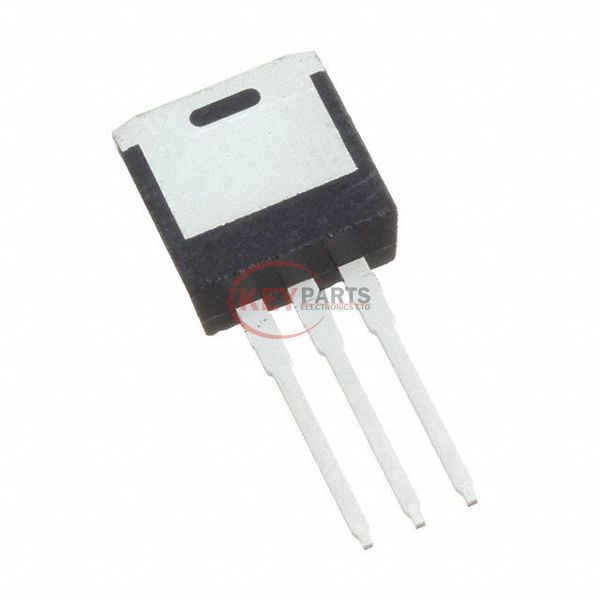

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPI100N08N3GHKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPI100N08N3GHKSA1
Description
MOSFET N-CH 80V 70A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPI100N08N3GHKSA1 PDF
In Stock
786
IPI100N08N3GHKSA1 Tech Specifications
SeriesOptiMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs10mOhm @ 46A, 10V
Vgs(th) (Max) @ Id3.5V @ 46µA
Gate Charge (Qg) (Max) @ Vgs35 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2410 pF @ 40 V
FET Feature-
Power Dissipation (Max)100W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IPI100N08N3GHKSA1, use the request quote form to request IPI100N08N3GHKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPI100N08N3GHKSA1. The price and lead time for IPI100N08N3GHKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPI100N08N3GHKSA1. We look forward to working with you to establish long-term relations of cooperation.
