QSH2818-51-07-012-8192-AT

Enlarger

Lmages are for reference only See Product Specitications

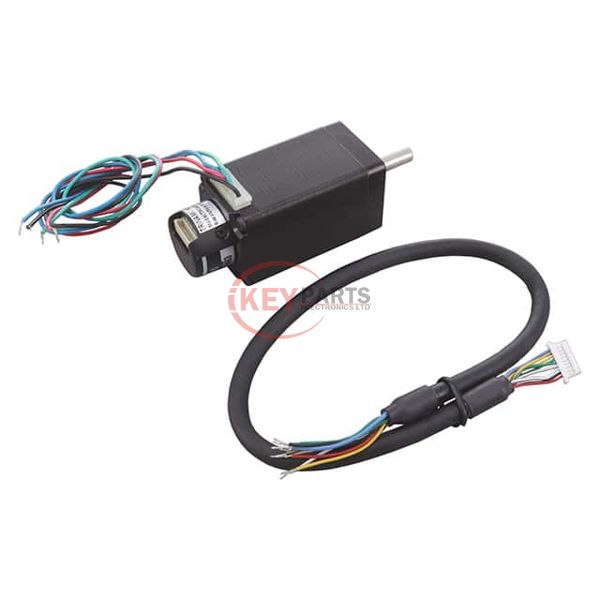

TRINAMIC Motion Control GmbH QSH2818-51-07-012-8192-AT

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
QSH2818-51-07-012-8192-AT
Description
STEP MOTOR HYBRID NEMA11 ENC 819
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
QSH2818-51-07-012-8192-AT PDF
QSH2818-51-07-012-8192-AT Tech Specifications
SeriesQMot QSH2818
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated6.2VDC
Current Rating (Amps)670 mA
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)17 / 120
Size / DimensionSquare - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size11
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.787" (20.00mm)
Mounting Hole Spacing0.906" (23.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance9.2 Ohms
FeaturesFlatted Shaft
Request Quote Now
Request Quote Now

We can supply QSH2818-51-07-012-8192-AT, use the request quote form to request QSH2818-51-07-012-8192-AT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH2818-51-07-012-8192-AT. The price and lead time for QSH2818-51-07-012-8192-AT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH2818-51-07-012-8192-AT. We look forward to working with you to establish long-term relations of cooperation.
