PD20-1-1210

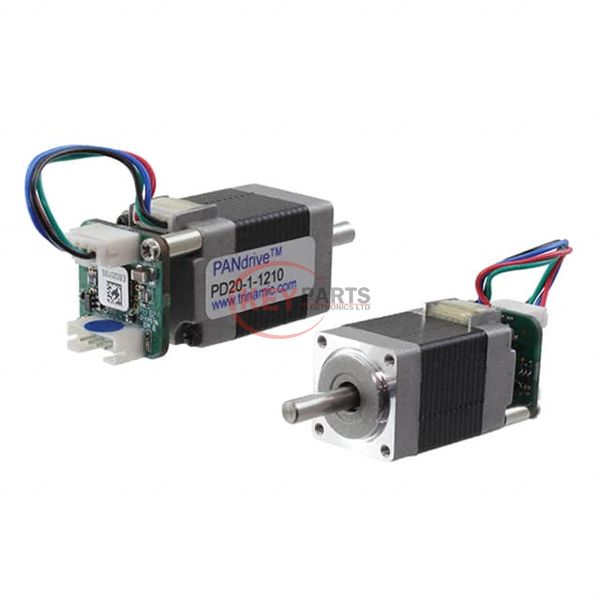

Enlarger

Lmages are for reference only See Product Specitications

TRINAMIC Motion Control GmbH PD20-1-1210

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD20-1-1210
Description
PANDRIVE NEMA08, 24V, 1.75NCM
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD20-1-1210 PDF
In Stock
930
PD20-1-1210 Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)600 mA
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)2.48 / 17.5
Size / DimensionSquare - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size8
Diameter - Shaft0.157" (4.00mm)
Length - Shaft and Bearing0.591" (15.00mm)
Mounting Hole Spacing0.630" (16.00mm)
Termination StyleConnector
Operating Temperature-20°C ~ 50°C
Coil Resistance6.5 Ohms
FeaturesIntegrated Controller, Round Shaft
Request Quote Now
Request Quote Now

We can supply PD20-1-1210, use the request quote form to request PD20-1-1210 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD20-1-1210. The price and lead time for PD20-1-1210 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD20-1-1210. We look forward to working with you to establish long-term relations of cooperation.
