20M024D1U

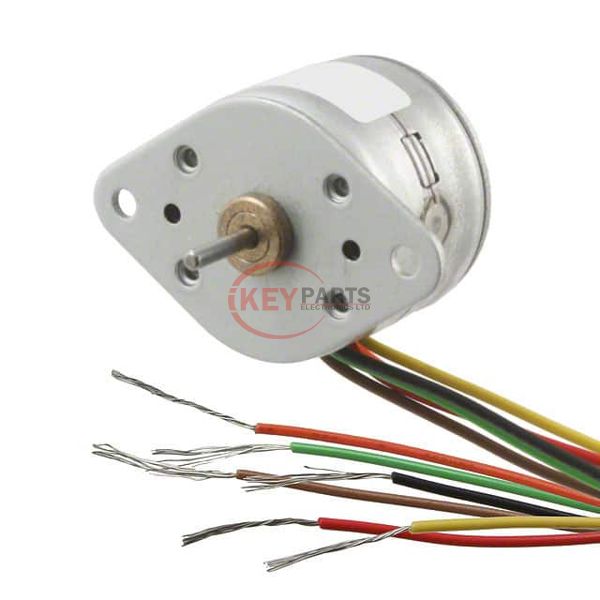

Enlarger

Lmages are for reference only See Product Specitications

Portescap 20M024D1U

Manufacturer :
Portescap
Mfr. Part # :
20M024D1U
Description
STEPPER MOTOR PM UNIPOLAR 5V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
20M024D1U PDF
20M024D1U Tech Specifications
Series20M
PackageBulk
Part StatusActive
TypePermanent Magnet
Coil TypeUnipolar
Voltage - Rated5VDC
Current Rating (Amps)250 mA
Steps per Revolution24
Step Angle15°
Accuracy±15%
Torque - Holding (oz-in / mNm)1.1 / 7.77
Size / DimensionRound - 0.807" Dia (20.50mm)
NEMA Frame Size-
Diameter - Shaft0.059" (1.50mm)
Length - Shaft and Bearing0.335" (8.50mm)
Mounting Hole Spacing0.984" (25.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 70°C
Coil Resistance20 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply 20M024D1U, use the request quote form to request 20M024D1U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 20M024D1U. The price and lead time for 20M024D1U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 20M024D1U. We look forward to working with you to establish long-term relations of cooperation.
