QSH5718-51-28-101-10000-AT

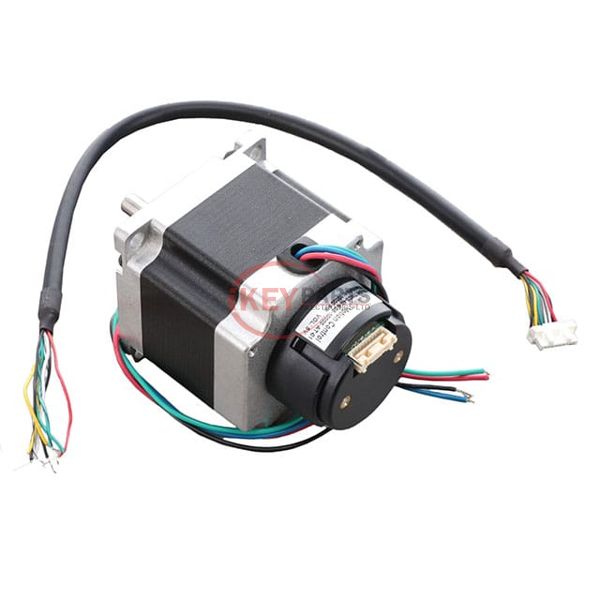

Enlarger

Lmages are for reference only See Product Specitications

TRINAMIC Motion Control GmbH QSH5718-51-28-101-10000-AT

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
QSH5718-51-28-101-10000-AT
Description
STEP MOTOR HYBRID NEMA23 ENC 100
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
QSH5718-51-28-101-10000-AT PDF
QSH5718-51-28-101-10000-AT Tech Specifications
SeriesQMot QSH5718
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated2.3VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)143.03 / 1010
Size / DimensionSquare - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size23
Diameter - Shaft0.250" (6.35mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance0.8 Ohms
FeaturesFlatted Shaft
Request Quote Now
Request Quote Now

We can supply QSH5718-51-28-101-10000-AT, use the request quote form to request QSH5718-51-28-101-10000-AT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH5718-51-28-101-10000-AT. The price and lead time for QSH5718-51-28-101-10000-AT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH5718-51-28-101-10000-AT. We look forward to working with you to establish long-term relations of cooperation.
