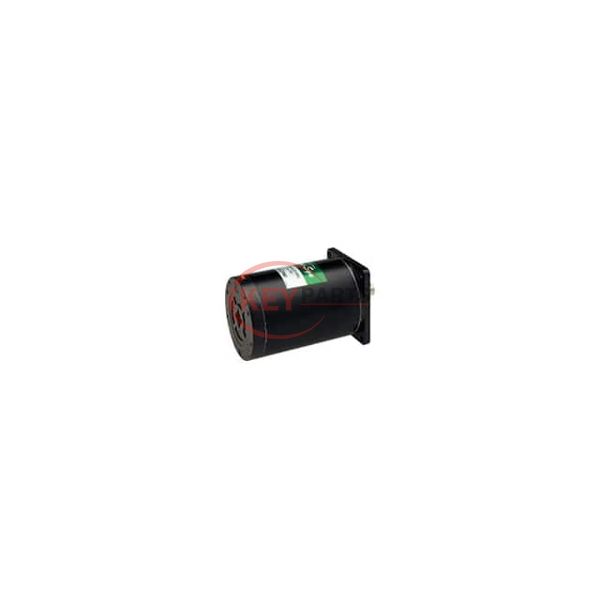

103H89222-5241

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Denki SanMotion Products 103H89222-5241

Manufacturer :
Sanyo Denki SanMotion Products
Mfr. Part # :
103H89222-5241
Description
STEP, F2, 106, 1.8, , , BIPOLAR/
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
103H89222-5241 PDF
103H89222-5241 Tech Specifications
SeriesH
PackageBox
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated100VAC
Current Rating (Amps)6 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)1869 / 13200
Size / DimensionSquare - 4.173" x 4.173" (106.00mm x 106.00mm)
NEMA Frame Size-
Diameter - Shaft0.630" (16.00mm)
Length - Shaft and Bearing1.378" (35.00mm)
Mounting Hole Spacing3.500" (88.90mm)
Termination StyleWire Leads
Operating Temperature-10°C ~ 50°C
Coil Resistance0.45 Ohms
Features-
Request Quote Now
Request Quote Now

We can supply 103H89222-5241, use the request quote form to request 103H89222-5241 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 103H89222-5241. The price and lead time for 103H89222-5241 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 103H89222-5241. We look forward to working with you to establish long-term relations of cooperation.
