SH2285-5671

Enlarger

Lmages are for reference only See Product Specitications

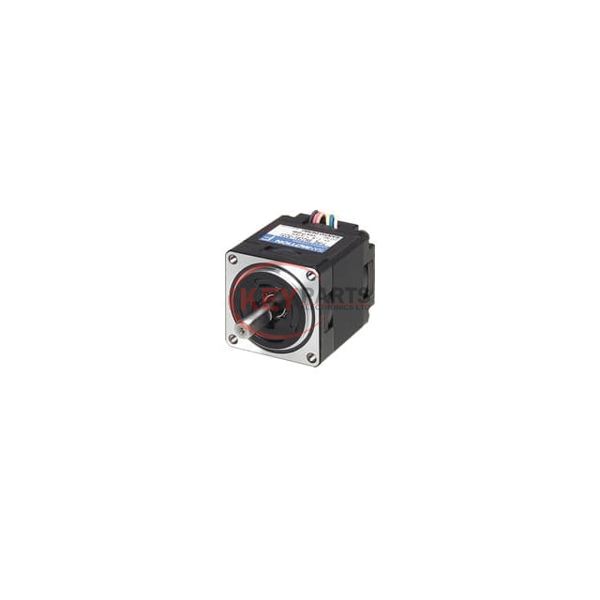

Sanyo Denki SanMotion Products SH2285-5671

Manufacturer :
Sanyo Denki SanMotion Products
Mfr. Part # :
SH2285-5671
Description
STEP, F2, SQ.28, 1.8, , , BIPOLA
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SH2285-5671 PDF
SH2285-5671 Tech Specifications
SeriesSH
PackageBox
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)500 mA
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)20.53 / 145
Size / Dimension-
NEMA Frame Size-
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.591" (15.00mm)
Mounting Hole Spacing0.906" (23.00mm)
Termination StyleWire Leads
Operating Temperature-10°C ~ 50°C
Coil Resistance15 Ohms
Features-
Request Quote Now
Request Quote Now

We can supply SH2285-5671, use the request quote form to request SH2285-5671 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH2285-5671. The price and lead time for SH2285-5671 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SH2285-5671. We look forward to working with you to establish long-term relations of cooperation.
