NEMA23-17-15SD-AMT112S

Enlarger

Lmages are for reference only See Product Specitications

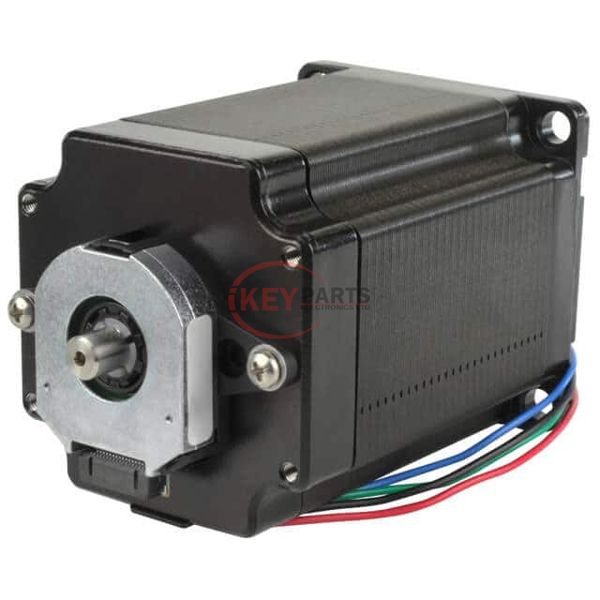

CUI Devices NEMA23-17-15SD-AMT112S

Manufacturer :
CUI Devices
Mfr. Part # :
NEMA23-17-15SD-AMT112S
Description
STEPPER MOTOR W/ INCREMENTAL ENC
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NEMA23-17-15SD-AMT112S PDF
NEMA23-17-15SD-AMT112S Tech Specifications
SeriesNEMA23-AMT112S
PackageBox
Part StatusActive
Type-
Coil TypeBipolar
Voltage - Rated24 ~ 80VDC
Current Rating (Amps)2.1 A
Steps per Revolution200
Step Angle1.8°
Accuracy±0.2%
Torque - Holding (oz-in / mNm)85 / 600.23
Size / DimensionSquare - 2.252" x 2.252" (57.20mm x 57.20mm)
NEMA Frame Size23
Diameter - Shaft0.250" (6.35mm)
Length - Shaft and Bearing0.811" (20.60mm)
Mounting Hole Spacing1.819" (46.20mm)
Termination StyleConnector
Operating Temperature-20°C ~ 50°C
Coil Resistance1.2 Ohms
FeaturesIntegrated Encoder, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply NEMA23-17-15SD-AMT112S, use the request quote form to request NEMA23-17-15SD-AMT112S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NEMA23-17-15SD-AMT112S. The price and lead time for NEMA23-17-15SD-AMT112S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NEMA23-17-15SD-AMT112S. We look forward to working with you to establish long-term relations of cooperation.
