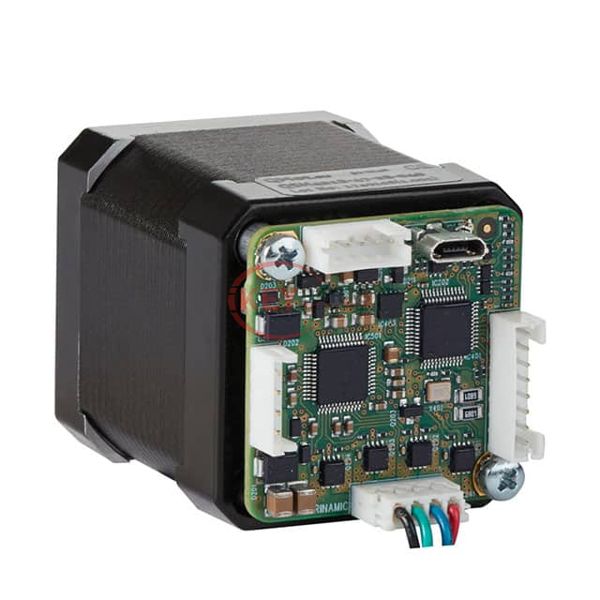

PD42-3-1241-TMCL

Enlarger

Lmages are for reference only See Product Specitications

TRINAMIC Motion Control GmbH PD42-3-1241-TMCL

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD42-3-1241-TMCL
Description
PANDRIVE NEMA17, 24V, 0.4NM
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD42-3-1241-TMCL PDF
In Stock
982
PD42-3-1241-TMCL Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)3 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)56.66 / 400
Size / DimensionSquare - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size17
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (31.00mm)
Termination StyleWire Leads with Connector
Operating Temperature-20°C ~ 50°C
Coil Resistance0.5 Ohms
FeaturesIntegrated Controller, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PD42-3-1241-TMCL, use the request quote form to request PD42-3-1241-TMCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD42-3-1241-TMCL. The price and lead time for PD42-3-1241-TMCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD42-3-1241-TMCL. We look forward to working with you to establish long-term relations of cooperation.
