PM35S-075-038

Enlarger

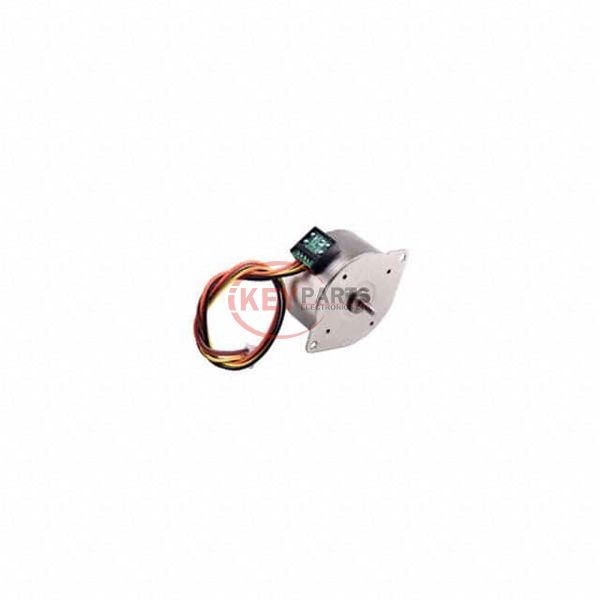

Lmages are for reference only See Product Specitications

Lin Engineering PM35S-075-038

Manufacturer :
Lin Engineering
Mfr. Part # :
PM35S-075-038
Description
PERMANENT MAGNET STEPPER MOTOR
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PM35S-075-038 PDF
PM35S-075-038 Tech Specifications
Series-
PackageTray
Part StatusActive
Type-
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)0.38 A
Steps per Revolution48
Step Angle7.5°
Accuracy-
Torque - Holding (oz-in / mNm)6.4 / 45.2
Size / DimensionRound - 1.650" Dia (42.00mm)
NEMA Frame Size-
Diameter - Shaft0.118" (3.00mm)
Length - Shaft and Bearing0.394" (10.00mm)
Mounting Hole Spacing1.650" (42.00mm)
Termination StyleWire Leads with Connector
Operating Temperature-20°C ~ 50°C
Coil Resistance12 Ohms
Features-
Request Quote Now
Request Quote Now

We can supply PM35S-075-038, use the request quote form to request PM35S-075-038 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PM35S-075-038. The price and lead time for PM35S-075-038 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PM35S-075-038. We look forward to working with you to establish long-term relations of cooperation.
