IXBA16N170AHV

Enlarger

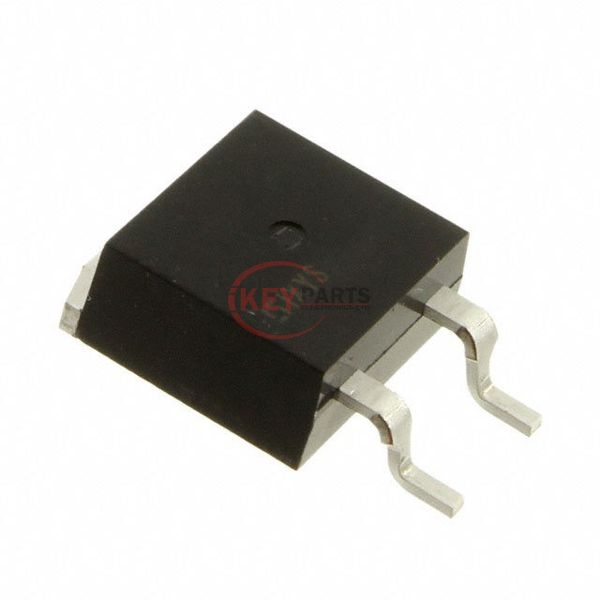

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXBA16N170AHV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXBA16N170AHV
Description
REVERSE CONDUCTING IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXBA16N170AHV PDF
IXBA16N170AHV Tech Specifications
SeriesBIMOSFET™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)16 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic6V @ 15V, 10A
Power - Max150 W
Switching Energy2.5mJ (off)
Input TypeStandard
Gate Charge65 nC
Td (on/off) @ 25°C15ns/250ns
Test Condition1360V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)25 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263HV
Request Quote Now
Request Quote Now

We can supply IXBA16N170AHV, use the request quote form to request IXBA16N170AHV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXBA16N170AHV. The price and lead time for IXBA16N170AHV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXBA16N170AHV. We look forward to working with you to establish long-term relations of cooperation.
