IRG4PSC71UPBF

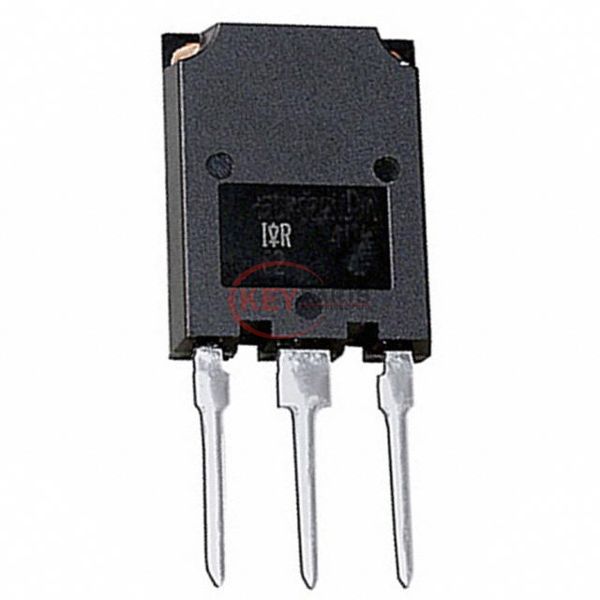

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IRG4PSC71UPBF

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRG4PSC71UPBF
Description
ULTRAFAST SPEED IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4PSC71UPBF PDF
IRG4PSC71UPBF Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)85 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 60A
Power - Max350 W
Switching Energy420µJ (on), 1.99mJ (off)
Input TypeStandard
Gate Charge340 nC
Td (on/off) @ 25°C34ns/56ns
Test Condition480V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-274AA
Supplier Device PackageSUPER-247™ (TO-274AA)
Request Quote Now
Request Quote Now

We can supply IRG4PSC71UPBF, use the request quote form to request IRG4PSC71UPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4PSC71UPBF. The price and lead time for IRG4PSC71UPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4PSC71UPBF. We look forward to working with you to establish long-term relations of cooperation.
