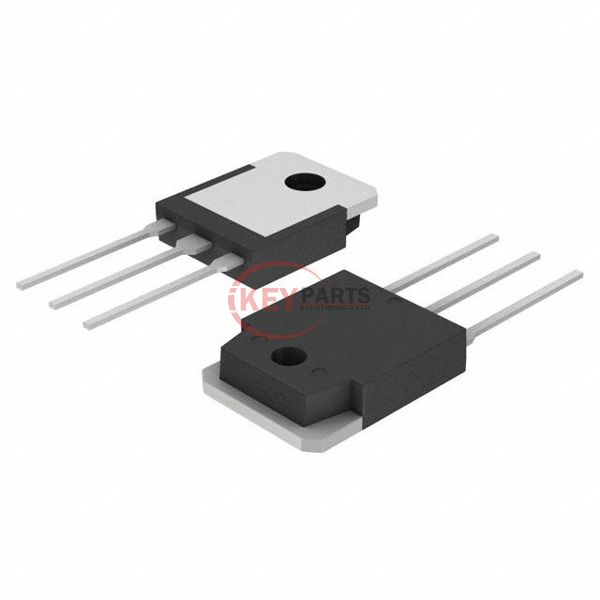

Sanyo Semiconductor/ON Semiconductor FGA15N120ANTDTU-F109

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGA15N120ANTDTU-F109
Description
IGBT 1200V 30A 186W TO3P
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGA15N120ANTDTU-F109 PDF
FGA15N120ANTDTU-F109 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeNPT and Trench
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)45 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 15A
Power - Max186 W
Switching Energy3mJ (on), 600µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C15ns/160ns
Test Condition600V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)330 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply FGA15N120ANTDTU-F109, use the request quote form to request FGA15N120ANTDTU-F109 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGA15N120ANTDTU-F109. The price and lead time for FGA15N120ANTDTU-F109 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGA15N120ANTDTU-F109. We look forward to working with you to establish long-term relations of cooperation.
