IRG4BC30SPBF

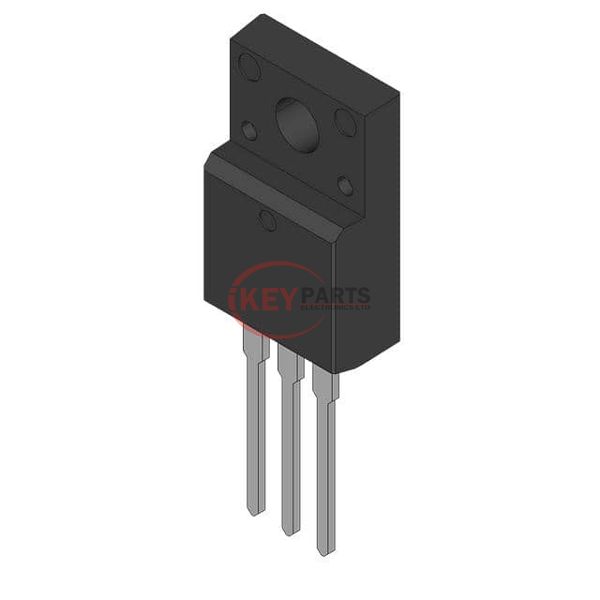

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IRG4BC30SPBF

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRG4BC30SPBF
Description
IGBT, 34A I(C), 600V V(BR)CES, N
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4BC30SPBF PDF
IRG4BC30SPBF Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)34 A
Current - Collector Pulsed (Icm)68 A
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 18A
Power - Max100 W
Switching Energy260µJ (on), 3.45mJ (off)
Input TypeStandard
Gate Charge75 nC
Td (on/off) @ 25°C22ns/540ns
Test Condition480V, 18A, 23Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
Request Quote Now
Request Quote Now

We can supply IRG4BC30SPBF, use the request quote form to request IRG4BC30SPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4BC30SPBF. The price and lead time for IRG4BC30SPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4BC30SPBF. We look forward to working with you to establish long-term relations of cooperation.
