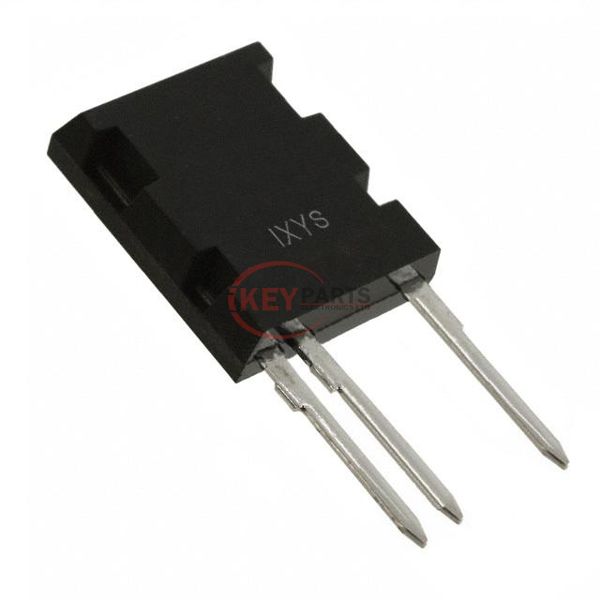

IXYL40N250CV1

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYL40N250CV1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYL40N250CV1
Description
IGBT 2.5KV 70A ISOPLUSI5-PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYL40N250CV1 PDF
IXYL40N250CV1 Tech Specifications
SeriesXPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 40A
Power - Max577 W
Switching Energy11.7mJ (on), 6.9mJ (off)
Input TypeStandard
Gate Charge270 nC
Td (on/off) @ 25°C21ns/200ns
Test Condition1250V, 40A, 1Ohm, 15V
Reverse Recovery Time (trr)210 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
Request Quote Now
Request Quote Now

We can supply IXYL40N250CV1, use the request quote form to request IXYL40N250CV1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYL40N250CV1. The price and lead time for IXYL40N250CV1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYL40N250CV1. We look forward to working with you to establish long-term relations of cooperation.
