Series | TrenchStop™ | |
Package | Tube | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 80 A | |
Current - Collector Pulsed (Icm) | 160 A | |
Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A | |
Power - Max | 500 W | |
Switching Energy | 1.45mJ (on), 1.55mJ (off) | |
Input Type | Standard | |
Gate Charge | 285 nC | |
Td (on/off) @ 25°C | 27ns/315ns | |
Test Condition | 600V, 40A, 9Ohm, 15V | |
Reverse Recovery Time (trr) | 255 ns | |
Operating Temperature | -40°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

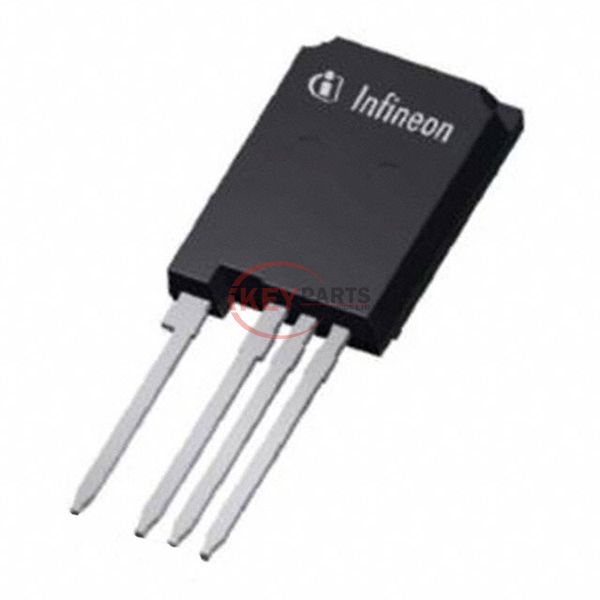

Package / Case | TO-247-4 | |
Supplier Device Package | PG-TO247-4-2 |
We can supply IKY40N120CS6XKSA1, use the request quote form to request IKY40N120CS6XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKY40N120CS6XKSA1. The price and lead time for IKY40N120CS6XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKY40N120CS6XKSA1. We look forward to working with you to establish long-term relations of cooperation.
![]() |
