FGH75T65SQDTL4

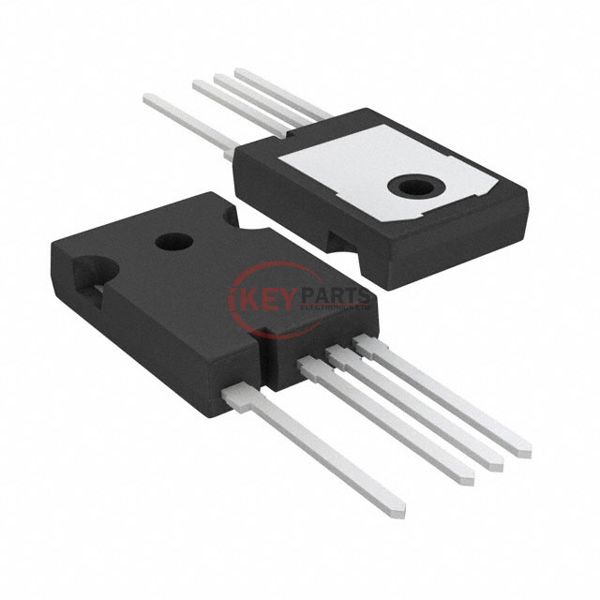

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGH75T65SQDTL4

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGH75T65SQDTL4
Description
650V FS4 TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGH75T65SQDTL4 PDF
In Stock
343
FGH75T65SQDTL4 Tech Specifications
Series-
PackageTube
Part StatusLast Time Buy
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)150 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Power - Max-
Switching Energy307µJ (on), 266µJ (off)
Input TypeStandard
Gate Charge128 nC
Td (on/off) @ 25°C44ns/276ns
Test Condition400V, 18.8A, 15Ohm, 15V
Reverse Recovery Time (trr)76 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply FGH75T65SQDTL4, use the request quote form to request FGH75T65SQDTL4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGH75T65SQDTL4. The price and lead time for FGH75T65SQDTL4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGH75T65SQDTL4. We look forward to working with you to establish long-term relations of cooperation.
