TIG056BF-1E

Enlarger

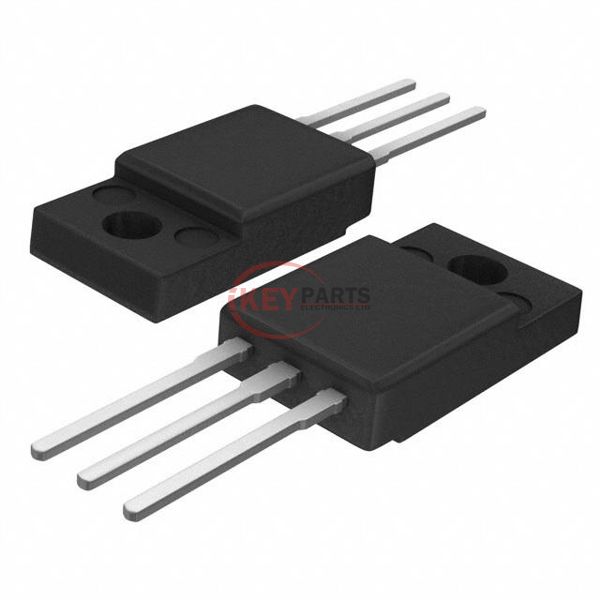

Lmages are for reference only See Product Specitications

Rochester Electronics TIG056BF-1E

Manufacturer :
Rochester Electronics
Mfr. Part # :
TIG056BF-1E
Description
INSULATED GATE BIPOLAR TRANSISTO
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TIG056BF-1E PDF
TIG056BF-1E Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)430 V
Current - Collector (Ic) (Max)-
Current - Collector Pulsed (Icm)240 A
Vce(on) (Max) @ Vge, Ic5V @ 15V, 240A
Power - Max30 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C46ns/140ns
Test Condition320V, 240A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3FS
Request Quote Now
Request Quote Now

We can supply TIG056BF-1E, use the request quote form to request TIG056BF-1E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TIG056BF-1E. The price and lead time for TIG056BF-1E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TIG056BF-1E. We look forward to working with you to establish long-term relations of cooperation.
