APT50GF120LRG

Enlarger

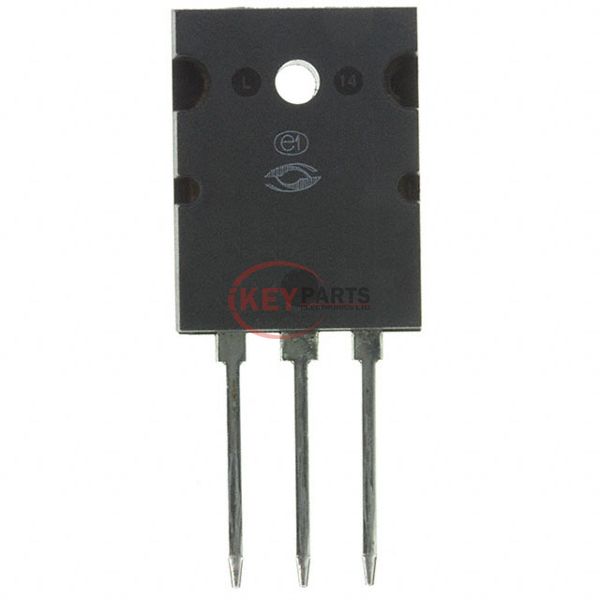

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT50GF120LRG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT50GF120LRG
Description
IGBT 1200V 135A 781W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT50GF120LRG PDF
In Stock
395
APT50GF120LRG Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)135 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 50A
Power - Max781 W
Switching Energy3.6mJ (on), 2.64mJ (off)
Input TypeStandard
Gate Charge340 nC
Td (on/off) @ 25°C25ns/260ns
Test Condition800V, 50A, 1Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 [L]
Request Quote Now
Request Quote Now

We can supply APT50GF120LRG, use the request quote form to request APT50GF120LRG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT50GF120LRG. The price and lead time for APT50GF120LRG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT50GF120LRG. We look forward to working with you to establish long-term relations of cooperation.
