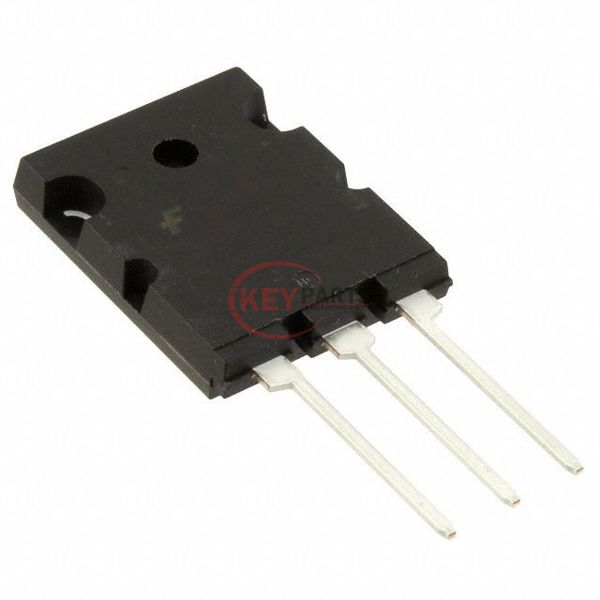

FGL12040WD

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGL12040WD

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGL12040WD
Description
IGBT TRENCH/FS 1200V 80A TO264-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGL12040WD PDF
FGL12040WD Tech Specifications
Series-
PackageTube
Part StatusLast Time Buy
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 40A
Power - Max391 W
Switching Energy4.1mJ (on), 1mJ (off)
Input TypeStandard
Gate Charge226 nC
Td (on/off) @ 25°C45ns/560ns
Test Condition600V, 40A, 23Ohm, 15V
Reverse Recovery Time (trr)71 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply FGL12040WD, use the request quote form to request FGL12040WD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGL12040WD. The price and lead time for FGL12040WD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGL12040WD. We look forward to working with you to establish long-term relations of cooperation.
