FGA25N120ANTDTU-F109

Enlarger

Lmages are for reference only See Product Specitications

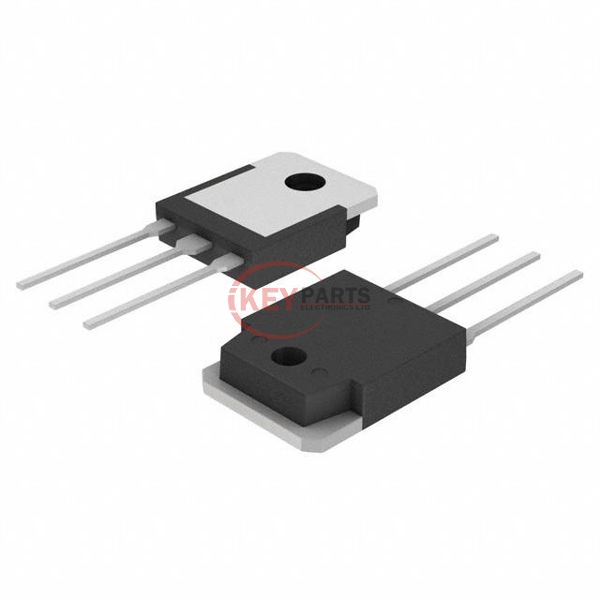

Sanyo Semiconductor/ON Semiconductor FGA25N120ANTDTU-F109

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGA25N120ANTDTU-F109
Description
IGBT 1200V 50A 312W TO3P
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGA25N120ANTDTU-F109 PDF
FGA25N120ANTDTU-F109 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeNPT and Trench
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)50 A
Current - Collector Pulsed (Icm)90 A
Vce(on) (Max) @ Vge, Ic2.65V @ 15V, 50A
Power - Max312 W
Switching Energy4.1mJ (on), 960µJ (off)
Input TypeStandard
Gate Charge200 nC
Td (on/off) @ 25°C50ns/190ns
Test Condition600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr)350 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now
