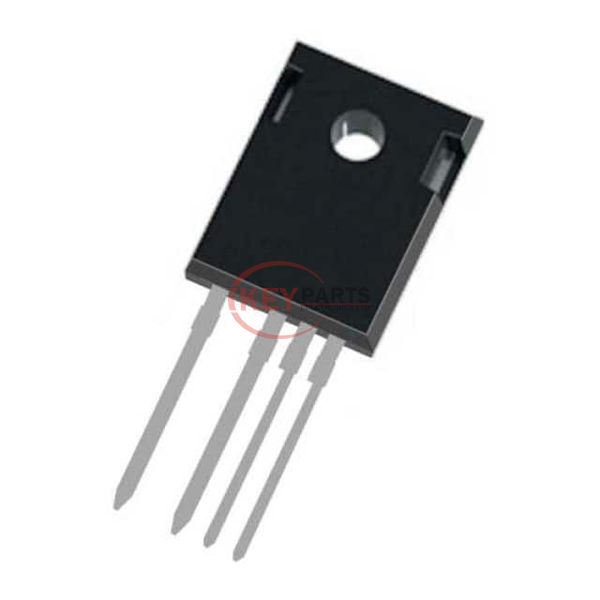

IKZA50N65SS5XKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IKZA50N65SS5XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IKZA50N65SS5XKSA1
Description
INDUSTRY 14
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IKZA50N65SS5XKSA1 PDF
IKZA50N65SS5XKSA1 Tech Specifications
SeriesTrenchStop™ 5
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 50A
Power - Max274 W
Switching Energy230µJ (on), 520µJ (off)
Input TypeStandard
Gate Charge110 nC
Td (on/off) @ 25°C19ns/140ns
Test Condition400V, 50A, 9Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4-3
Request Quote Now
Request Quote Now

We can supply IKZA50N65SS5XKSA1, use the request quote form to request IKZA50N65SS5XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKZA50N65SS5XKSA1. The price and lead time for IKZA50N65SS5XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKZA50N65SS5XKSA1. We look forward to working with you to establish long-term relations of cooperation.
