APT25GR120S

Enlarger

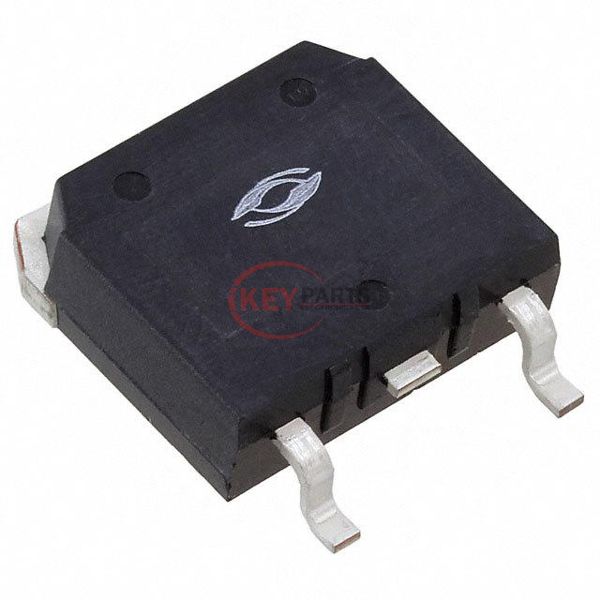

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT25GR120S

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT25GR120S
Description
IGBT 1200V 75A 521W D3PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT25GR120S PDF
APT25GR120S Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 25A
Power - Max521 W
Switching Energy742µJ (on), 427µJ (off)
Input TypeStandard
Gate Charge203 nC
Td (on/off) @ 25°C16ns/122ns
Test Condition600V, 25A, 4.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device PackageD3Pak
Request Quote Now
Request Quote Now

We can supply APT25GR120S, use the request quote form to request APT25GR120S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT25GR120S. The price and lead time for APT25GR120S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT25GR120S. We look forward to working with you to establish long-term relations of cooperation.
