RGCL80TS60GC11

Enlarger

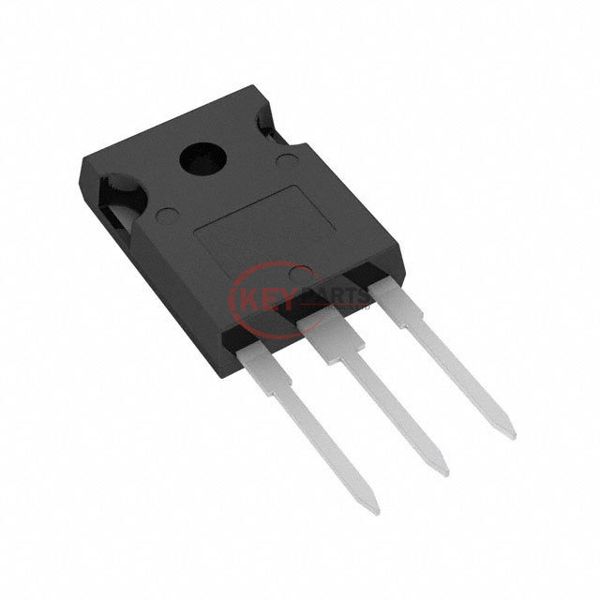

Lmages are for reference only See Product Specitications

ROHM Semiconductor RGCL80TS60GC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGCL80TS60GC11
Description
IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGCL80TS60GC11 PDF
In Stock
445
RGCL80TS60GC11 Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)65 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 40A
Power - Max148 W
Switching Energy1.11mJ (on), 1.68mJ (off)
Input TypeStandard
Gate Charge98 nC
Td (on/off) @ 25°C53ns/227ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGCL80TS60GC11, use the request quote form to request RGCL80TS60GC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGCL80TS60GC11. The price and lead time for RGCL80TS60GC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGCL80TS60GC11. We look forward to working with you to establish long-term relations of cooperation.
