FGL35N120FTDTU

Enlarger

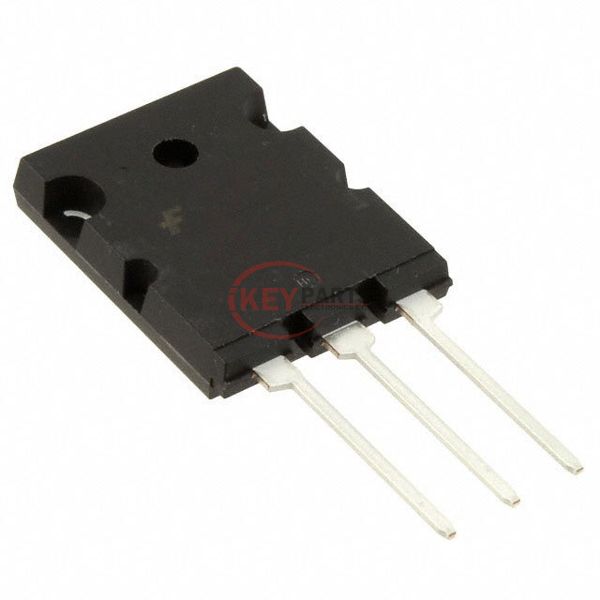

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGL35N120FTDTU

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGL35N120FTDTU
Description
IGBT TRENCH/FS 1200V 70A TO264-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGL35N120FTDTU PDF
In Stock
172375
FGL35N120FTDTU Tech Specifications
Series-
PackageTube
Part StatusLast Time Buy
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)105 A
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 35A
Power - Max368 W
Switching Energy2.5mJ (on), 1.7mJ (off)
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C34ns/172ns
Test Condition600V, 35A, 10Ohm, 15V
Reverse Recovery Time (trr)337 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply FGL35N120FTDTU, use the request quote form to request FGL35N120FTDTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGL35N120FTDTU. The price and lead time for FGL35N120FTDTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGL35N120FTDTU. We look forward to working with you to establish long-term relations of cooperation.
