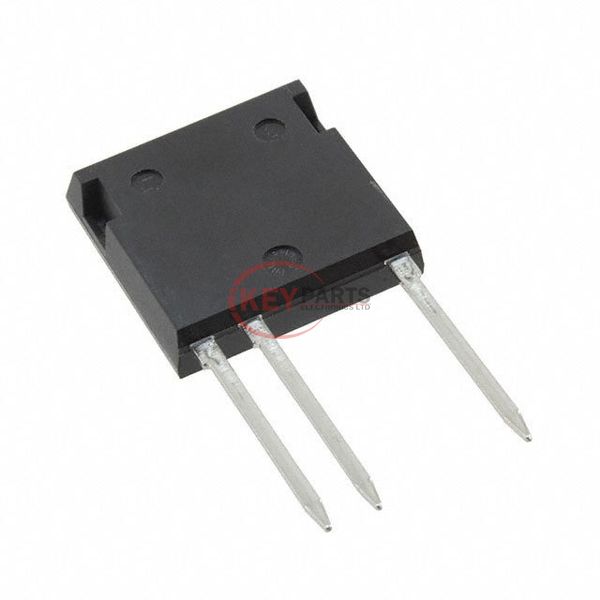

IXBF50N360

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXBF50N360

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXBF50N360
Description
IGBT 3600V 70A 290W I4-PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXBF50N360 PDF
IXBF50N360 Tech Specifications
SeriesBIMOSFET™
PackageTube
Part StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)420 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 50A
Power - Max290 W
Switching Energy-
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C46ns/205ns
Test Condition960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
Request Quote Now
Request Quote Now

We can supply IXBF50N360, use the request quote form to request IXBF50N360 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXBF50N360. The price and lead time for IXBF50N360 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXBF50N360. We look forward to working with you to establish long-term relations of cooperation.
