RJP60F4DPM-00#T1

Enlarger

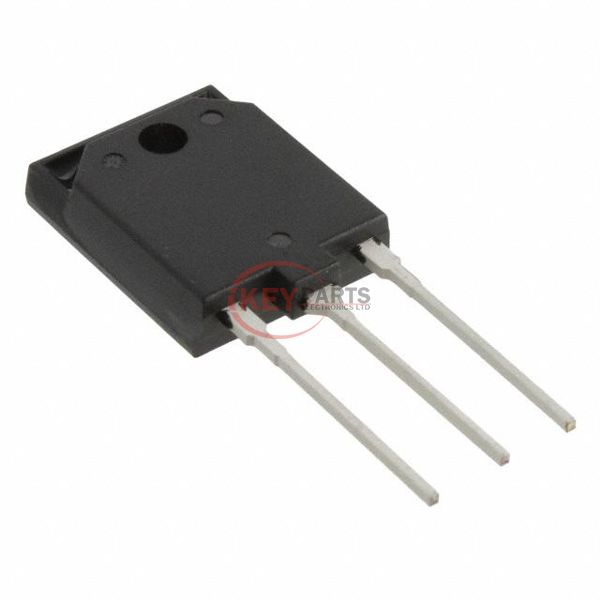

Lmages are for reference only See Product Specitications

Renesas Electronics America RJP60F4DPM-00#T1

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJP60F4DPM-00#T1
Description
IGBT 600V 60A 41.2W TO-3PFM
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJP60F4DPM-00#T1 PDF
RJP60F4DPM-00#T1 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic1.82V @ 15V, 30A
Power - Max41.2 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C45ns/70ns
Test Condition400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3PFM, SC-93-3
Supplier Device PackageTO-3PFM
Request Quote Now
Request Quote Now

We can supply RJP60F4DPM-00#T1, use the request quote form to request RJP60F4DPM-00#T1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJP60F4DPM-00#T1. The price and lead time for RJP60F4DPM-00#T1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJP60F4DPM-00#T1. We look forward to working with you to establish long-term relations of cooperation.
