HGT1S2N120CN

Enlarger

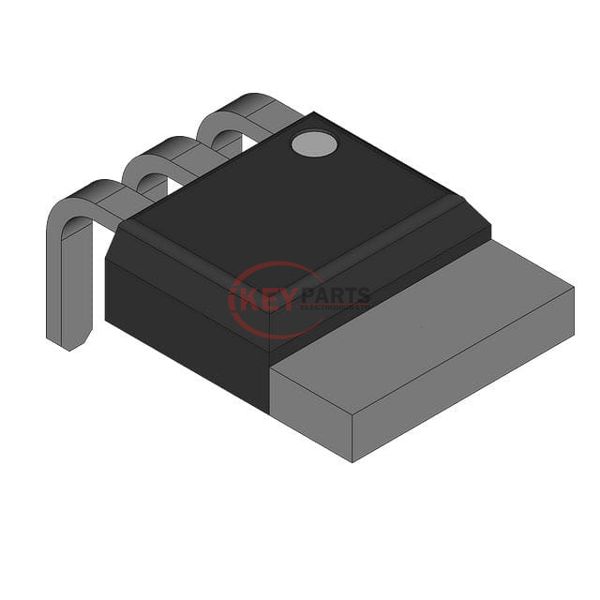

Lmages are for reference only See Product Specitications

Rochester Electronics HGT1S2N120CN

Manufacturer :
Rochester Electronics
Mfr. Part # :
HGT1S2N120CN
Description
N-CHANNEL IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HGT1S2N120CN PDF
HGT1S2N120CN Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1.2 V
Current - Collector (Ic) (Max)13 A
Current - Collector Pulsed (Icm)20 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 2.6A
Power - Max104 W
Switching Energy96µJ (on), 355µJ (off)
Input TypeStandard
Gate Charge30 nC
Td (on/off) @ 25°C25ns/205ns
Test Condition960V, 2.6A, 51Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device PackageTO-262
Request Quote Now
Request Quote Now

We can supply HGT1S2N120CN, use the request quote form to request HGT1S2N120CN pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HGT1S2N120CN. The price and lead time for HGT1S2N120CN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HGT1S2N120CN. We look forward to working with you to establish long-term relations of cooperation.
