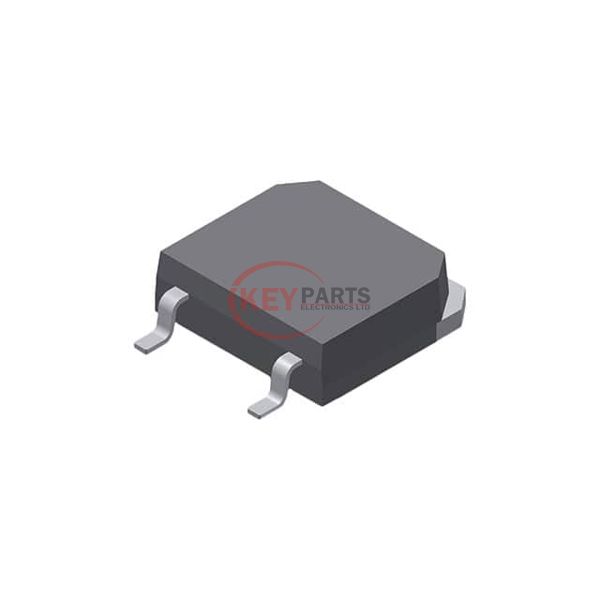

IXYT55N120A4HV

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYT55N120A4HV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYT55N120A4HV
Description
IGBT GENX4 1200V 55A TO268HV
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYT55N120A4HV PDF
IXYT55N120A4HV Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)175 A
Current - Collector Pulsed (Icm)350 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 55A
Power - Max650 W
Switching Energy2.3mJ (on), 5.3mJ (off)
Input TypeStandard
Gate Charge110 nC
Td (on/off) @ 25°C23ns/300ns
Test Condition600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)35 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device PackageTO-268HV
Request Quote Now
Request Quote Now

We can supply IXYT55N120A4HV, use the request quote form to request IXYT55N120A4HV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYT55N120A4HV. The price and lead time for IXYT55N120A4HV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYT55N120A4HV. We look forward to working with you to establish long-term relations of cooperation.
