DMC3071LVT-13

Enlarger

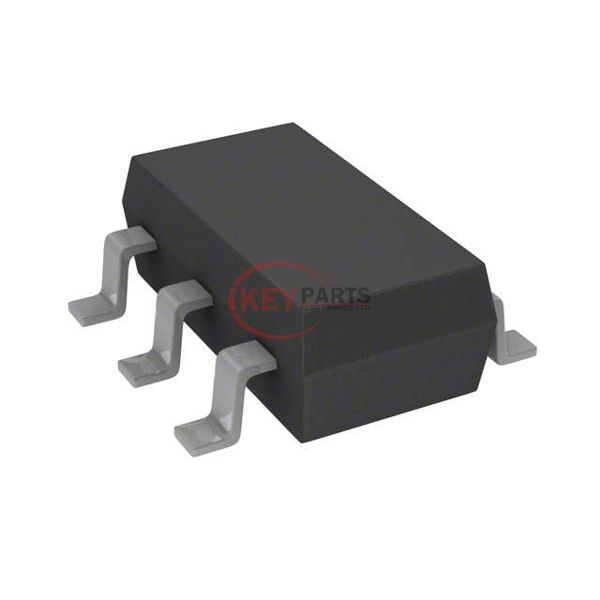

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMC3071LVT-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMC3071LVT-13
Description
MOSFET BVDSS: 25V-30V TSOT26 T&R
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMC3071LVT-13 PDF
In Stock
298
DMC3071LVT-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C4.6A (Ta), 3.3A (Ta)
Rds On (Max) @ Id, Vgs50mOhm @ 3.5A, 10V, 95mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5nC @ 10V, 6.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds190pF @ 15V, 254pF @ 15V
Power - Max700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageTSOT-26
Request Quote Now
Request Quote Now

We can supply DMC3071LVT-13, use the request quote form to request DMC3071LVT-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMC3071LVT-13. The price and lead time for DMC3071LVT-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMC3071LVT-13. We look forward to working with you to establish long-term relations of cooperation.
