SH8MA4TB1

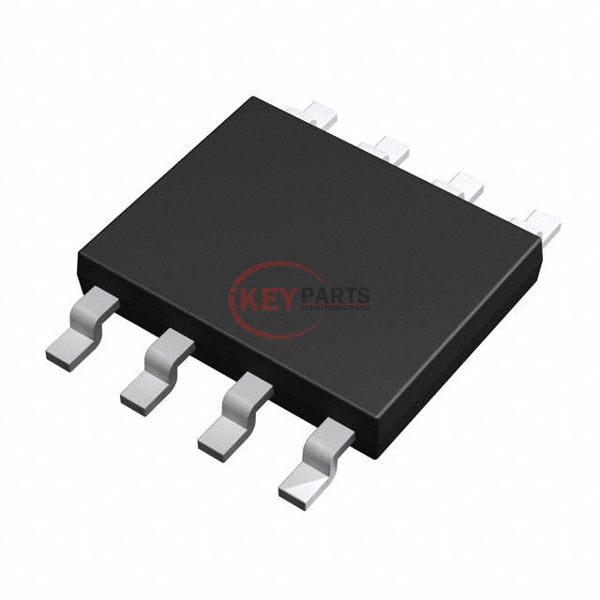

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor SH8MA4TB1

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
SH8MA4TB1
Description
SH8MA4TB1 IS LOW ON-RESISTANCE A
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SH8MA4TB1 PDF
In Stock
2082
SH8MA4TB1 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C9A (Ta), 8.5A (Ta)
Rds On (Max) @ Id, Vgs21.4mOhm @ 9A, 10V, 29.6mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs15.5nC, 19.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds640pF, 890pF @ 15V
Power - Max2W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOP
Request Quote Now
Request Quote Now

We can supply SH8MA4TB1, use the request quote form to request SH8MA4TB1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH8MA4TB1. The price and lead time for SH8MA4TB1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SH8MA4TB1. We look forward to working with you to establish long-term relations of cooperation.
