NTMTS0D7N04CTXG

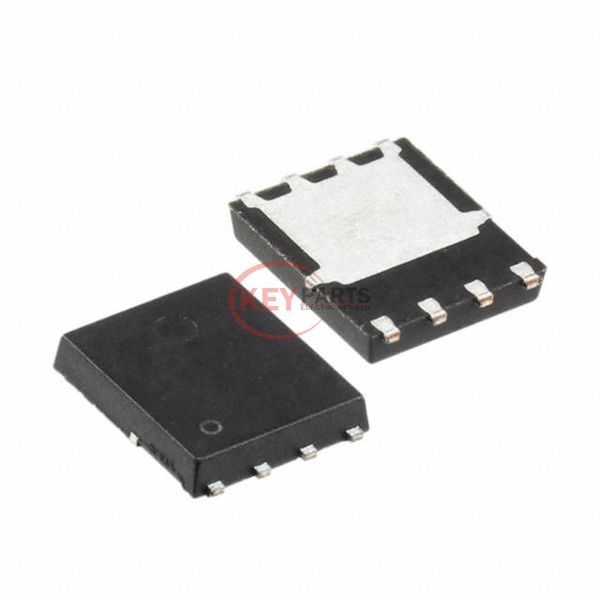

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTMTS0D7N04CTXG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTMTS0D7N04CTXG
Description
MOSFET N-CH 40V 65A/420A 8DFNW
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTMTS0D7N04CTXG PDF
NTMTS0D7N04CTXG Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C65A (Ta), 420A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs670µOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs140 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9230 pF @ 25 V
FET Feature-
Power Dissipation (Max)4.9W (Ta), 205W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply NTMTS0D7N04CTXG, use the request quote form to request NTMTS0D7N04CTXG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTMTS0D7N04CTXG. The price and lead time for NTMTS0D7N04CTXG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTMTS0D7N04CTXG. We look forward to working with you to establish long-term relations of cooperation.
