G6N02L

Enlarger

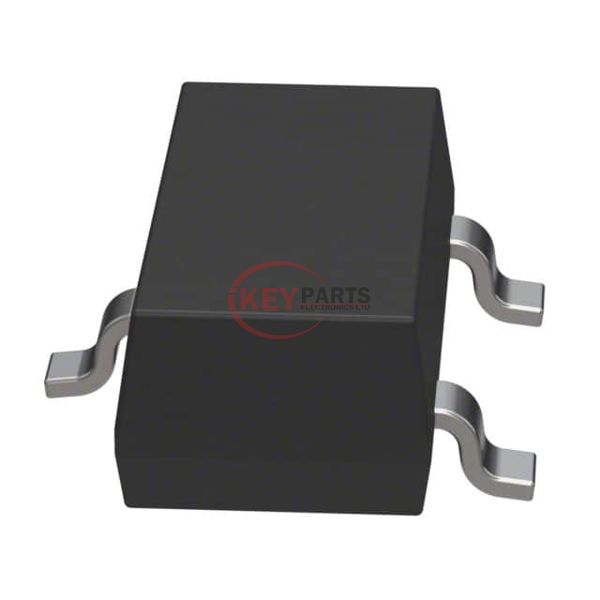

Lmages are for reference only See Product Specitications

G6N02L

Manufacturer :
Mfr. Part # :
G6N02L
Description
MOSFET N-CH 20V 6A SOT-23-3L
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
G6N02L PDF
In Stock
5994
G6N02L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs11.3mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.5 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1140 pF @ 10 V
FET FeatureStandard
Power Dissipation (Max)1.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-3
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply G6N02L, use the request quote form to request G6N02L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G6N02L. The price and lead time for G6N02L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G6N02L. We look forward to working with you to establish long-term relations of cooperation.
