NTD60N02R-001

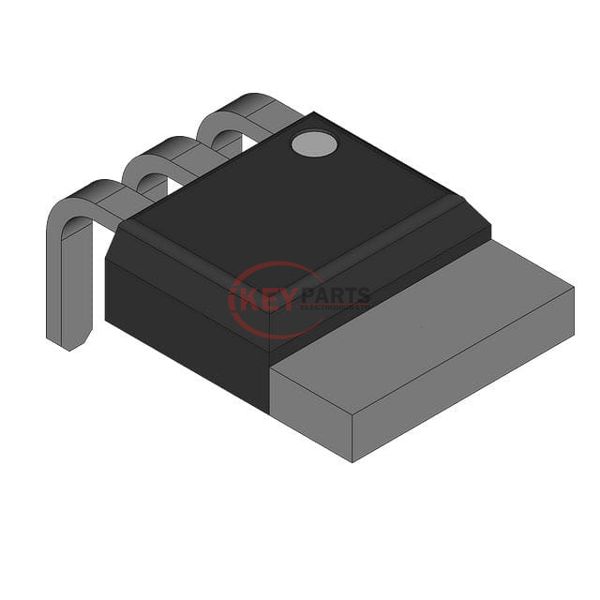

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics NTD60N02R-001

Manufacturer :
Rochester Electronics
Mfr. Part # :
NTD60N02R-001
Description
MOSFET N-CH 25V 8.5A/50A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTD60N02R-001 PDF
In Stock
152772
NTD60N02R-001 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C8.5A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs10.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1330 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.25W (Ta), 58W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK (SINGLE GAUGE)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply NTD60N02R-001, use the request quote form to request NTD60N02R-001 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTD60N02R-001. The price and lead time for NTD60N02R-001 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTD60N02R-001. We look forward to working with you to establish long-term relations of cooperation.
