DMN21D2UFB-7B

Enlarger

Lmages are for reference only See Product Specitications

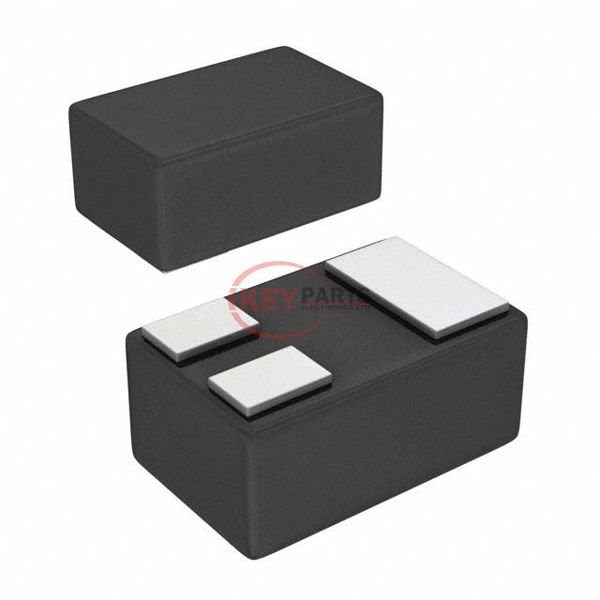

Zetex Semiconductors (Diodes Inc.) DMN21D2UFB-7B

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN21D2UFB-7B
Description
MOSFET N-CH 20V 760MA 3DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN21D2UFB-7B PDF
DMN21D2UFB-7B Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C760mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs990mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.93 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds27.6 pF @ 16 V
FET Feature-
Power Dissipation (Max)380mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-X1DFN1006
Package / Case3-UFDFN
Request Quote Now
Request Quote Now

We can supply DMN21D2UFB-7B, use the request quote form to request DMN21D2UFB-7B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN21D2UFB-7B. The price and lead time for DMN21D2UFB-7B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN21D2UFB-7B. We look forward to working with you to establish long-term relations of cooperation.
