SK8603150L

Enlarger

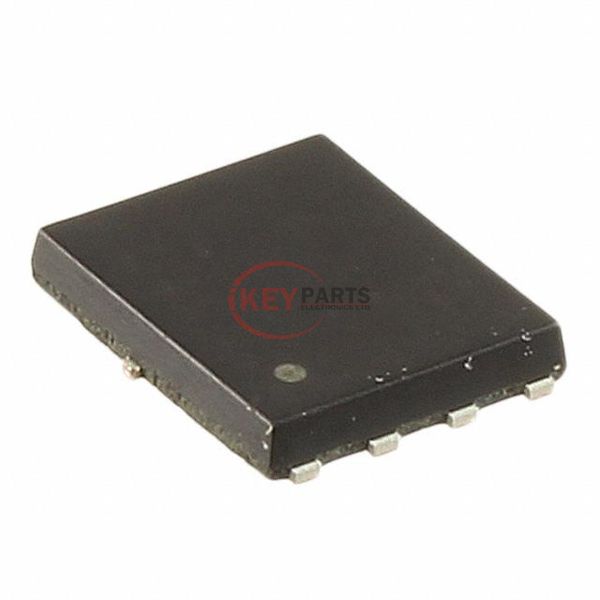

Lmages are for reference only See Product Specitications

Panasonic SK8603150L

Manufacturer :
Panasonic
Mfr. Part # :
SK8603150L
Description
MOSFET N-CH 30V 26A/89A 8HSO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SK8603150L PDF
In Stock
3000
SK8603150L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C26A (Ta), 89A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id3V @ 4.38mA
Gate Charge (Qg) (Max) @ Vgs28 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5180 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.9W (Ta), 34W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageHSO8-F4-B
Package / Case8-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply SK8603150L, use the request quote form to request SK8603150L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SK8603150L. The price and lead time for SK8603150L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SK8603150L. We look forward to working with you to establish long-term relations of cooperation.
