AO6409A

Enlarger

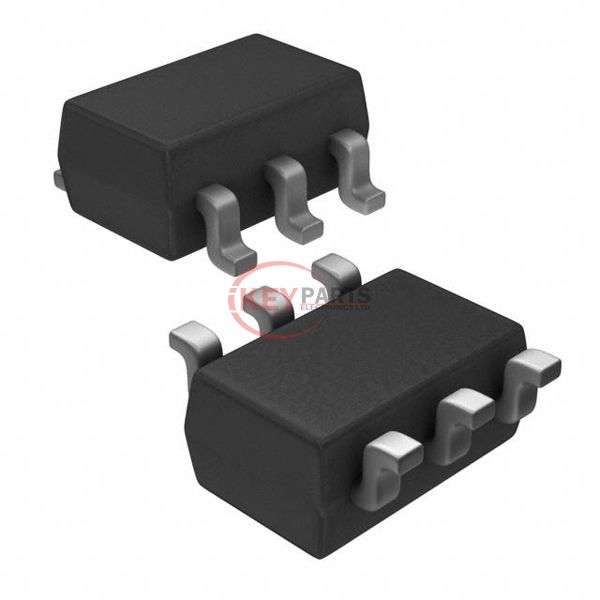

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO6409A

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO6409A
Description
MOSFET P-CH 20V 5.5A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO6409A PDF
AO6409A Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs41mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds905 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply AO6409A, use the request quote form to request AO6409A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO6409A. The price and lead time for AO6409A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO6409A. We look forward to working with you to establish long-term relations of cooperation.
