MMBT7002K-AQ

Enlarger

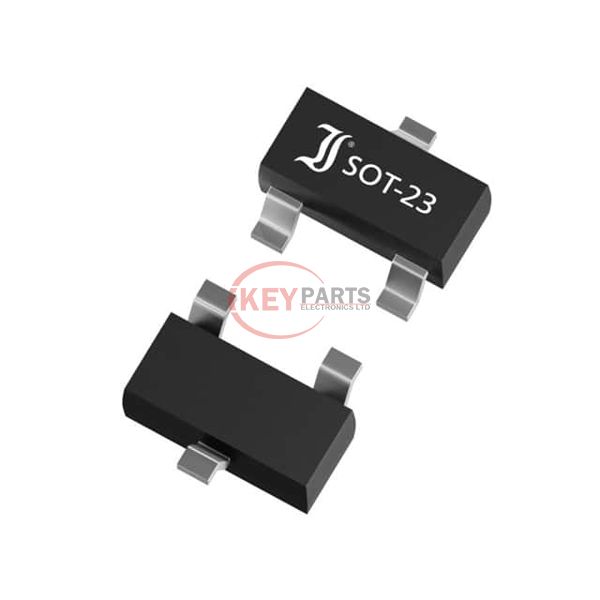

Lmages are for reference only See Product Specitications

Diotec Semiconductor MMBT7002K-AQ

Manufacturer :
Diotec Semiconductor
Mfr. Part # :
MMBT7002K-AQ
Description
MOSFET N-CH 60V 300MA SOT23-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MMBT7002K-AQ PDF
MMBT7002K-AQ Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 25 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-3 (TO-236)
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply MMBT7002K-AQ, use the request quote form to request MMBT7002K-AQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MMBT7002K-AQ. The price and lead time for MMBT7002K-AQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MMBT7002K-AQ. We look forward to working with you to establish long-term relations of cooperation.
