PSMN6R3-120ESQ

Enlarger

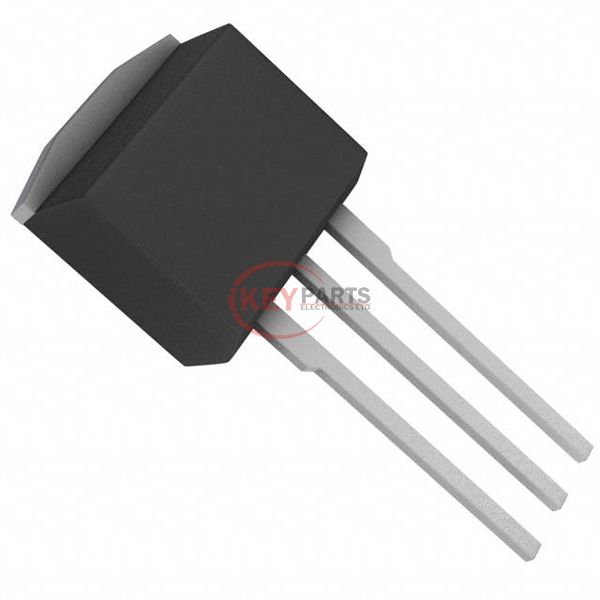

Lmages are for reference only See Product Specitications

Nexperia PSMN6R3-120ESQ

Manufacturer :
Nexperia
Mfr. Part # :
PSMN6R3-120ESQ
Description
MOSFET N-CH 120V 70A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN6R3-120ESQ PDF
In Stock
450
PSMN6R3-120ESQ Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs207.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11384 pF @ 60 V
FET Feature-
Power Dissipation (Max)405W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply PSMN6R3-120ESQ, use the request quote form to request PSMN6R3-120ESQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN6R3-120ESQ. The price and lead time for PSMN6R3-120ESQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN6R3-120ESQ. We look forward to working with you to establish long-term relations of cooperation.
