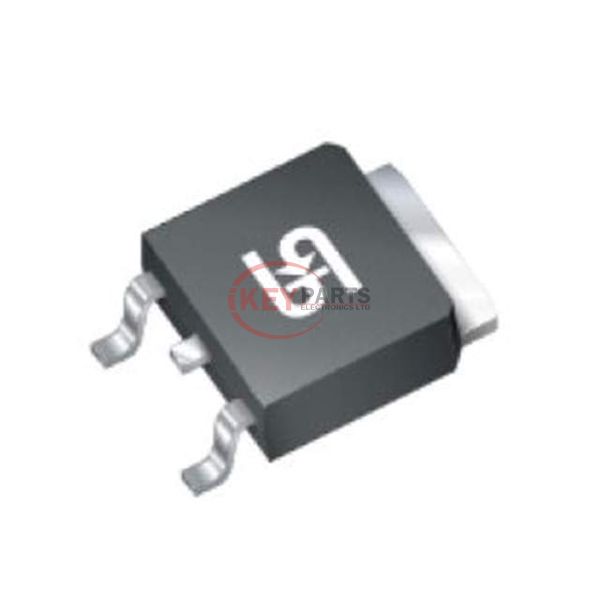

TSM70N10CP ROG

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM70N10CP ROG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM70N10CP ROG
Description
MOSFET N-CHANNEL 100V 70A TO252
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM70N10CP ROG PDF
TSM70N10CP ROG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs13mOhm @ 30A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs145 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4300 pF @ 30 V
FET Feature-
Power Dissipation (Max)120W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252, (D-Pak)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply TSM70N10CP ROG, use the request quote form to request TSM70N10CP ROG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM70N10CP ROG. The price and lead time for TSM70N10CP ROG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM70N10CP ROG. We look forward to working with you to establish long-term relations of cooperation.
