SISS22DN-T1-GE3

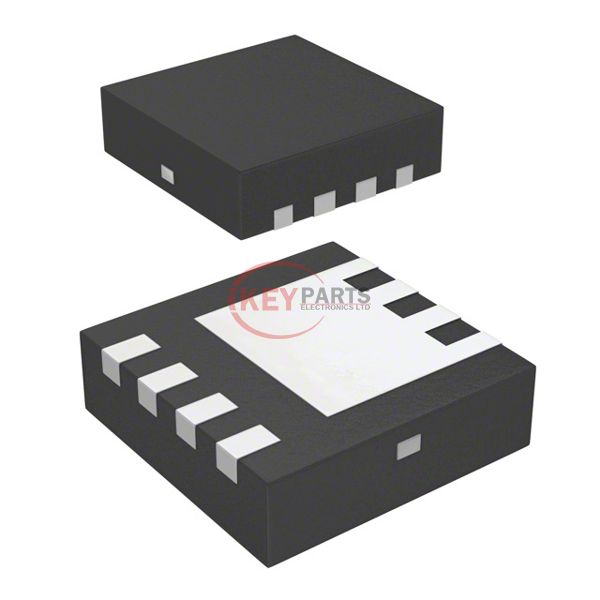

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SISS22DN-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SISS22DN-T1-GE3
Description
MOSFET N-CH 60V 25A/90.6A PPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SISS22DN-T1-GE3 PDF
SISS22DN-T1-GE3 Tech Specifications
SeriesTrenchFET® Gen IV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C25A (Ta), 90.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7.5V, 10V
Rds On (Max) @ Id, Vgs4mOhm @ 15A, 10V
Vgs(th) (Max) @ Id3.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1870 pF @ 30 V
FET Feature-
Power Dissipation (Max)5W (Ta), 65.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 1212-8S (3.3x3.3)
Package / CasePowerPAK® 1212-8S
Request Quote Now
Request Quote Now

We can supply SISS22DN-T1-GE3, use the request quote form to request SISS22DN-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SISS22DN-T1-GE3. The price and lead time for SISS22DN-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SISS22DN-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
