TSM085P03CS RLG

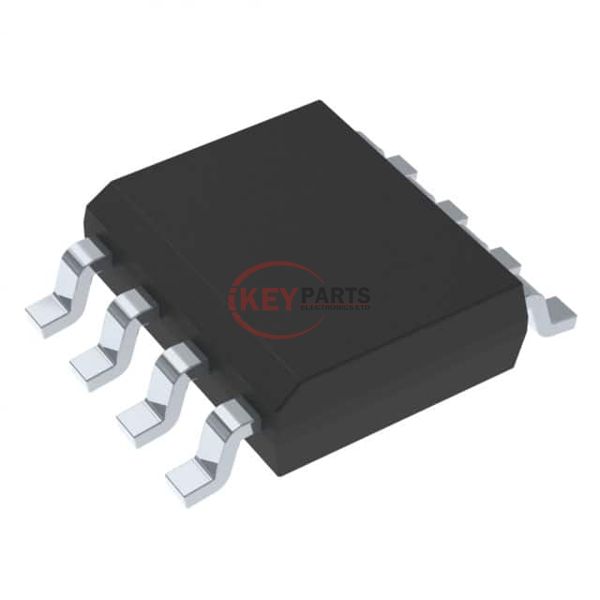

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM085P03CS RLG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM085P03CS RLG
Description
MOSFET P-CHANNEL 30V 34A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM085P03CS RLG PDF
TSM085P03CS RLG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs56 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3216 pF @ 15 V
FET Feature-
Power Dissipation (Max)14W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply TSM085P03CS RLG, use the request quote form to request TSM085P03CS RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM085P03CS RLG. The price and lead time for TSM085P03CS RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM085P03CS RLG. We look forward to working with you to establish long-term relations of cooperation.
