IMW120R045M1XKSA1

Enlarger

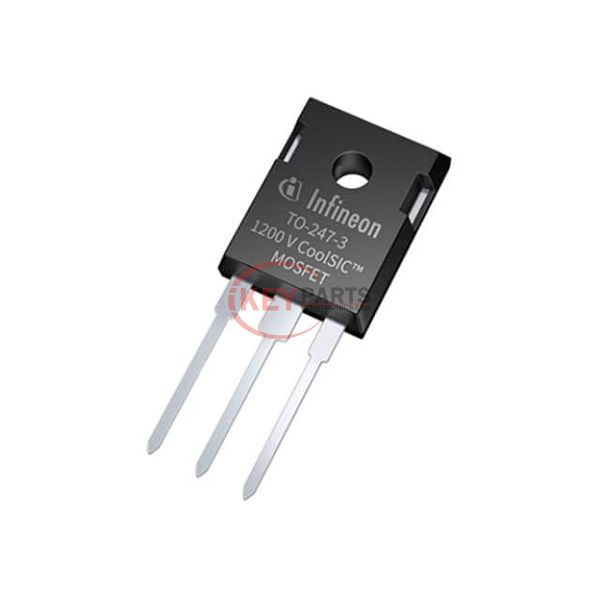

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IMW120R045M1XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IMW120R045M1XKSA1
Description
SICFET N-CH 1.2KV 52A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IMW120R045M1XKSA1 PDF
IMW120R045M1XKSA1 Tech Specifications
SeriesCoolSiC™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs59mOhm @ 20A, 15V
Vgs(th) (Max) @ Id5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs52 nC @ 15 V
Vgs (Max)+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds1.9 nF @ 800 V
FET Feature-
Power Dissipation (Max)228W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3-41
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IMW120R045M1XKSA1, use the request quote form to request IMW120R045M1XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMW120R045M1XKSA1. The price and lead time for IMW120R045M1XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IMW120R045M1XKSA1. We look forward to working with you to establish long-term relations of cooperation.
