RSJ301N10FRATL

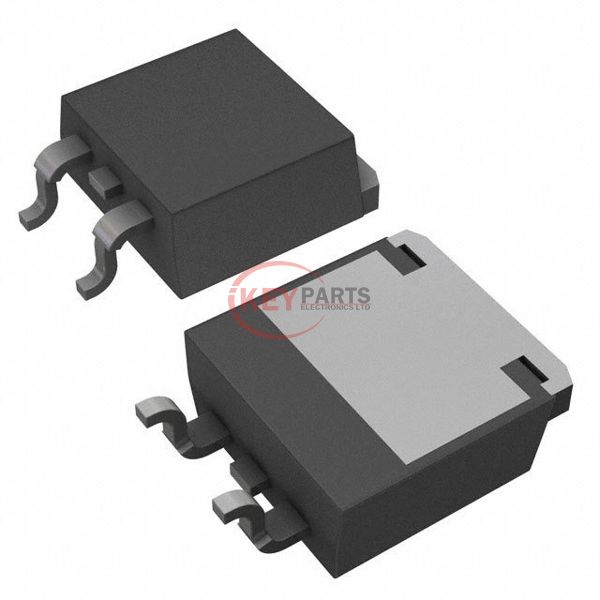

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor RSJ301N10FRATL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RSJ301N10FRATL
Description
MOSFET N-CH 100V 30A LPTS
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RSJ301N10FRATL PDF
RSJ301N10FRATL Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs46mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2100 pF @ 25 V
FET Feature-
Power Dissipation (Max)50W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLPTS
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply RSJ301N10FRATL, use the request quote form to request RSJ301N10FRATL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RSJ301N10FRATL. The price and lead time for RSJ301N10FRATL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RSJ301N10FRATL. We look forward to working with you to establish long-term relations of cooperation.
