TSM80N400CF C0G

Enlarger

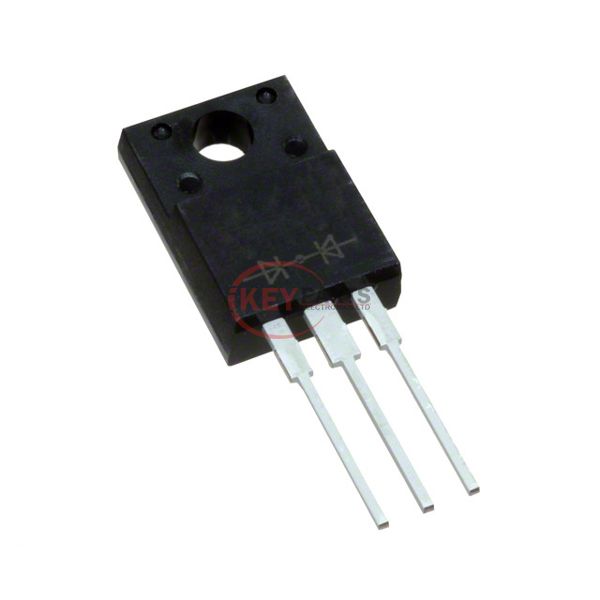

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM80N400CF C0G

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM80N400CF C0G
Description
MOSFET N-CH 800V 12A ITO220S
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM80N400CF C0G PDF
TSM80N400CF C0G Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs400mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs51 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1848 pF @ 100 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageITO-220S
Package / CaseTO-220-3 Full Pack
Request Quote Now
Request Quote Now

We can supply TSM80N400CF C0G, use the request quote form to request TSM80N400CF C0G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM80N400CF C0G. The price and lead time for TSM80N400CF C0G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM80N400CF C0G. We look forward to working with you to establish long-term relations of cooperation.
