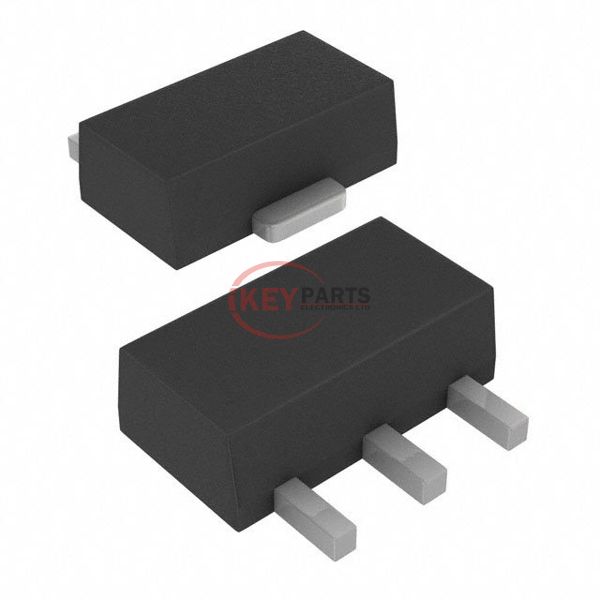

TP2502N8-G

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology TP2502N8-G

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
TP2502N8-G
Description
MOSFET P-CH 20V 630MA TO243AA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TP2502N8-G PDF
TP2502N8-G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C630mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs2Ohm @ 1A, 10V
Vgs(th) (Max) @ Id2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds125 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.6W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-243AA (SOT-89)
Package / CaseTO-243AA
Request Quote Now
Request Quote Now

We can supply TP2502N8-G, use the request quote form to request TP2502N8-G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TP2502N8-G. The price and lead time for TP2502N8-G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TP2502N8-G. We look forward to working with you to establish long-term relations of cooperation.
