FDMC2514SDC

Enlarger

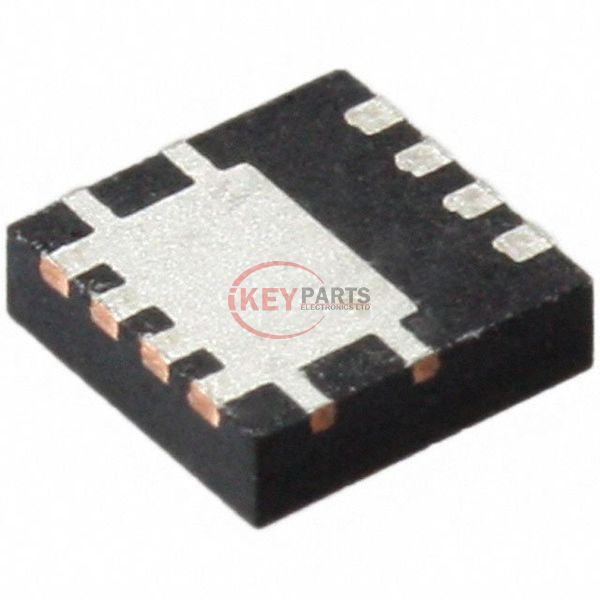

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMC2514SDC

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMC2514SDC
Description
MOSFET N-CH 25V 24A/40A DLCOOL33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMC2514SDC PDF
FDMC2514SDC Tech Specifications
SeriesDual Cool™, PowerTrench®, SyncFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C24A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2705 pF @ 13 V
FET Feature-
Power Dissipation (Max)3W (Ta), 60W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDual Cool ™ 33
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply FDMC2514SDC, use the request quote form to request FDMC2514SDC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMC2514SDC. The price and lead time for FDMC2514SDC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMC2514SDC. We look forward to working with you to establish long-term relations of cooperation.
