RAF040P01TCL

Enlarger

Lmages are for reference only See Product Specitications

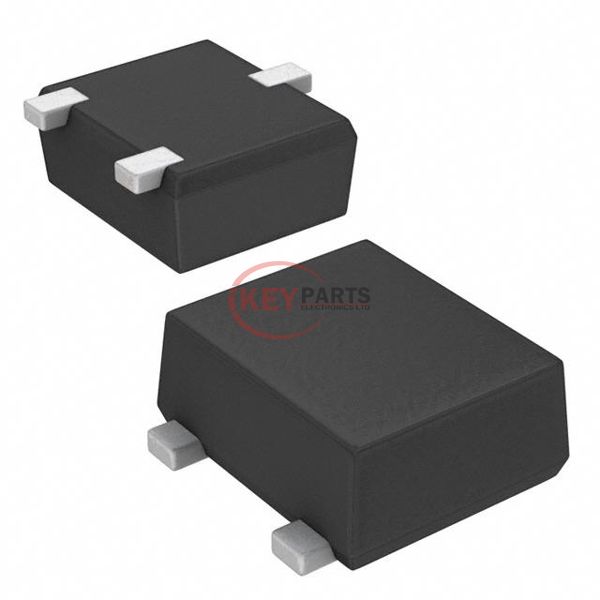

ROHM Semiconductor RAF040P01TCL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RAF040P01TCL
Description
MOSFET P-CH 12V 4A TUMT3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RAF040P01TCL PDF
RAF040P01TCL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs30mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 4.5 V
Vgs (Max)-8V
Input Capacitance (Ciss) (Max) @ Vds4000 pF @ 6 V
FET Feature-
Power Dissipation (Max)800mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTUMT3
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply RAF040P01TCL, use the request quote form to request RAF040P01TCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RAF040P01TCL. The price and lead time for RAF040P01TCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RAF040P01TCL. We look forward to working with you to establish long-term relations of cooperation.
